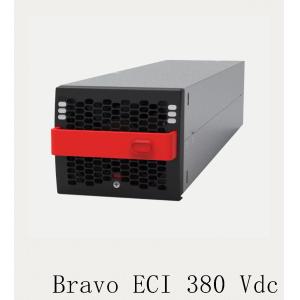

Bravo ECI – 380/230 is a compact modular inverter that converts a 380 Vdc power source into 230 Vac.
By using at least three modules, we can offer solutions for three-phase infrastructures (3x400Vac + N).
This solution is designed for high-voltage DC infrastructures.
An additional AC input is used under normal conditions to achieve an overall conversion efficiency of 96%.
In the event of a grid failure, it automatically switches to the DC to secure the loads.
Invest step-by-step in your power infrastructure with a modularity from 3 kVA to up to 450 kVA.
The hot swap feature makes maintenance easier.
The low ripple voltage avoids any disturbances on DC loads and batteries.
| In: DC voltage (input range) | 336 Vdc (200 – 400) |
| In/Out: AC voltage (input range) | 230 Vac (108 – 290) |
| Output power | 3 kVA / 2.5 kW |
| Efficiency: DC/AC | 94.5% |
| Efficiency: AC/AC | 96% |
| Temperature | -20 to 65°C (De-rating from 40°C) |
| Dimension | 2U x 103 mm x 435 mm |
| Part number | T521D70201 |
